Sargent Silver EC160 Power Supply Unit Deluxe - Horizontal

Sargent Silver EC160 Power Supply Unit Deluxe - Horizontal
Zoom  Zoom
Our Price:  £199.99
List Price:  £269.99
Saving Of:  £70.00 (26%)
(Inc. 20% VAT)
+

Part Number:  EC160SV
Brand:  Sargent

Availability:

In stock, immediate despatch

In stock, immediate despatch

Sargent

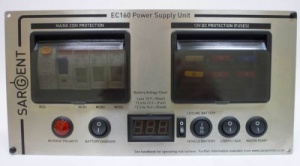

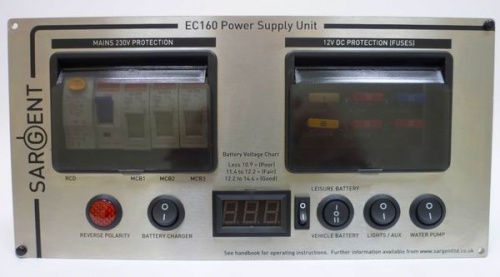

Sargent Silver EC160 Power Supply Deluxe - Horizontal

This Sargent EC160 Power Supply Unit is the ideal unit for a self-build campervan which provides both 12c and 240v power supplies. It is easy to install and operate courtesy of Sargent's simple design.

230v AC:

  • 16A input via wired 2m lead
  • RCD protected with reverse polarity indication
  • Built in 150w 13.8v fixed voltage battery charger with on/off switch
  • 3 x 10A MCB outputs via quick fit connector blocks

12v DC

  • 2 x 15A battery inputs via screw terminal block
  • 5 x outputs via screw terminal black
  • Pump output via pump switch & 5A fuse
  • Lights output via lights / Aux switch & Aux 10A fuse
  • Permanent output via 5A fuse
  • Fridge output VA 15A fuse
  • Built in split charge relay (configurable)
  • Built in EMC isolation relay (configurable)
  • Digital voltmeter with on/off switch

  • Dimensions: Front Panel: 300 x 150mm. Panel Cut Out 285 x 132mm x Depth 200mm
