Truma Combi 4E Gas & Electric Blown Air & Water Heater With iNet X Control Panel
New for 2023 with the iNet X control panel.
Combination heater with integrated heating elements for additional electrical mode
- Heats the vehicle and water very quickly
- Uses little energy
- Many installation options as it is extremely lightweight and compact
- The warm air from Combi 4 E is distributed optimally via four air outlets
- Gas, electrical and mixed modes are possible
More details about Truma Combi 4 E
Truma Combi 4 E combines all the benefits of Combi 4 with those of an electric heater. As opposed to Truma Combi 4, it also has integrated heating elements. This allows you to run the heater at camp sites with the 12V power supply unit without the vehicle battery. Combi 4 E uses very little electricity. The heater runs in gas mode for self-sufficient use, in electrical mode at the camp site and in mixed mode when outside temperatures are low. In summer, Truma Combi 4 E heats just the water without running the space heater.
Like all Combi models, Truma Combi 4 E also combines space and water heating in one appliance. The heater provides comfortable warmth in your vehicle in just a few minutes. It also heats the water that you need for showering, washing dishes or washing your hands. And the best thing about it: you only have to install one appliance in your caravan or motor home. This saves space and weight: as opposed to an S heater, there are no obstacles that you have to walk around in your vehicle.
Specifications
- Energy sources - Liquid gas (Propane/Butane) and electricity
- Operating pressure - 2.75 kPa
- Rated heat output (gas mode) - 3900 W
- Rated heat output (electrical mode) - 980 W / 1960 W
- Rated heat output (mixed mode) - 3900 W
- Fuel consumption - 130-260 g/h
- Power consumption (at 12 V): operation of heater and water container: max. 6.5 A for short periods (average approx. 1.2 A)
- Power consumption (at 12 V): heating water container max. 0.4 A
- Power consumption (at 230 V) 4.1 A / 8.1 A
- Air flow rate (free blowing) with 4 warm air outlets: max. 287 m³/h
- Water capacity - 10 litre
- Pump pressure - max 280 kPa
- System pressure - max 450 kPa
- Heating time from approx 15 °C to approx 60 °C - Boiler 23 minutes, Heater + Boiler 90 minutes
- Destination countries - Only approved for GB and IR
- Weight - 16.2 Kg
- Dimensions: Length 510 x Width 450 x Height 300 mm
- Installation dimensions, please see diagram below (minimum dimensions–additional space must be provided for the gas connection, water connections and drain valve (L x W x H) depending on the installation situation)

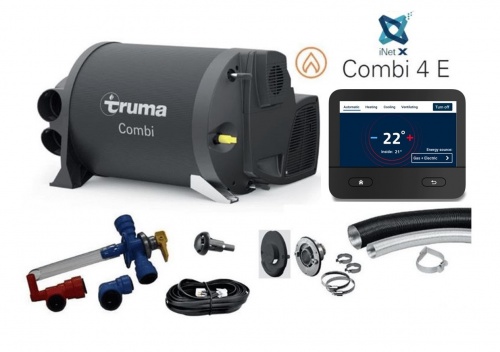

Whats included:
Truma Combi 4E Heater
Truma iNet X control panel
Truma Combi JG assy pack
Truma Combi 6m data cable
Truma Combi exhaust cowl kit (Black cover)
Ducting and outlets for the heating side are all available as optional extras.
The heart of the Truma iNet X system and the first step towards a smart camper
The Truma iNet X Panel is the central operating system of the iNet X system for retrofitting. The panel is therefore the key to our new technology, which enables a smart vehicle.
- Highlights of the Truma iNet X panel at a glance:
- Central control: Operate your devices with just one operating system
- Full overview: Always keep an eye on your room climate and messages
- Future-oriented: Add new devices, services and services later through updates
- Mobile networked: You can also use your smartphone for advanced control
- Autonomous on the go: Fix faults independently thanks to detailed error descriptions
- Reliable quality: Benefit from regular optimizations
