Fiamma Carry Bike Cycle Rack for VW T5 / T6 Twin Door
Fiamma Carry Bike Cycle Rack for VW T5 / T6 Twin Door

Fiamma Carry Bike Cycle Rack for VW T5 / T6 Twin Door

£359.95
(Inc. 20% VAT)
(3 Reviews)
No stock
+
Weight
7.10 kg
Description

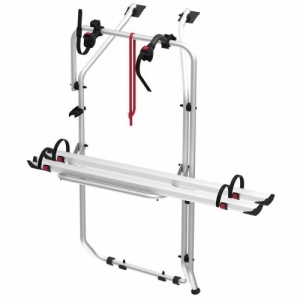

Fiamma Carry Bike Cycle Rack for VW T5 / T6 Twin Door

Fiamma bike carrier designed to carry two standard bikes. This bike rack is easy to install with the brackets as supplied, without the need to drill the vehicle.

This Carry-Bike is specifically designed for installation on the following vehicles:

- Volkswagen Transporter T5 / VW T5 Caravelle / VW T5 Multivan ( ≥2003 ≤2014 )

- Volkswagen Transporter T6 / VW T6 Caravelle / VW T6 Multivan ( ≥2014 )

- Volkswagen T6.1 with double rear door

Supplied with:

- 1 x Bike-Block Pro S 1 (Bike locking system)

- 1 x Bike-Block Pro S 2 (Bike locking system)

- Security Strip

- 2 x Rail Plus (Bike rails)

- Brackets

Specs:

- Colour: Aluminium

- Bikes carried standard: 2

- Bikes carried max.: 2

- Max load: 35kg

- E-Bike: No

- Position: Double Door

- Vertical wheelbase: 144cm

- Horizontal wheelbase (distance between brackets): 30cm

- Dimensions: 128 x 46.5 x 144cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)

- Weight: 7.1kg

- Distance between rails: 15cm

- Licence Plate Carrier: Optional - supplied separately

Key Features

Restyled 2023 model

For Volkswagen T5 and T6 with double rear doors

Allows the tailgate to be opened with the bike carrier mounted (without bikes)

Suitable ForVolkswagen T6
Dimensions128 x 46.5 x 144cm
ReplacesFiamma 02093B79A
BrandFiamma
Height Description1300mm
Width150mm
Depth630mm
Weight7.1kg
ColourAluminium
Maximum Load Description35kg
ApplicationCampervans
PositionDouble Doors
Capacity Description2 Bikes
Supplied WithBike-Block Pro S 1, Bike-Block Pro S 2, Security Strip, 2 x Rail Plus, Brackets
Optional ExtrasLicence Plate Carrier
Country of OriginItaly

The Fiamma Carry-Bike VW T5 D comes standard to carry two bikes.

Instructions
Customer Reviews (3)
Write a Review and share your opinions!
3 Reviews:

Good bike rack
Rating:
02 February 2016  |

Instructions on assembly leave much to be desired with it being easy to confuse similar parts with one another. Once done though it looks the part. Fitting it to the van is almost a two person job with it being necessary to force the rack down at the same time as securing the bottom brackets to the door. Very stable structure when done. It had been my intention to just attach the bike rack when I needed it but with the difficulty in getting it on in the first place, and I can't imagine it's that easy to get off either, it's staying where it is for the duration. Dropped a star for the poor instructions and no lock on the rack to secure the bikes.


Was this helpful to you?  Yes  /  No

Decent bike rack
Rating:
06 November 2015  |

Good quailty materials, well made. Pity that the instructions lack proper comment on various bolt lengths - assemble finger-tight, as you'll need to go back and swap some around, probably. Bit of a tight fit against paintwork on base of door, but it looks a workmanlike product.


Was this helpful to you?  Yes  /  No

Nearly perfect
Rating:
09 July 2015  |

The rack is very easy to install as long as you have a couple of 10 and 8mm spanners. Before I ordered it I assumd that the rack and nay bikes on it would be secure from theft, but that simply isn't the case. Anyone with the above spanners can remove the rack once in situ and take your bikes so actually that's a big let down for the rack and why I wouldn't give it 5 stars which it would otherwise get. It seems that the only real way to make the rack and bikes secure is to use permanent resin on the bolts that hold it all together, which would also make the thing impossible to remove. Just have to keep my finger crossed that opportunist thieves don't usually have spanners with them!


Was this helpful to you?  Yes  /  No
Part Number
02096-79-
Brand
Fiamma
